XK Model J3 with Gyro
- 650mm
|
XK Model J3 with Gyro 650mm
XK Model J3

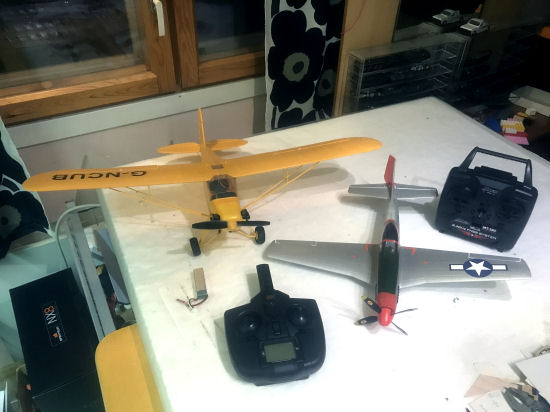

XK Model J3 and
Airnox P-51
- With RC-Transmitters
Locking the
frontside of the Gear with Screws
|
| Landing
Gear and Wheels
|

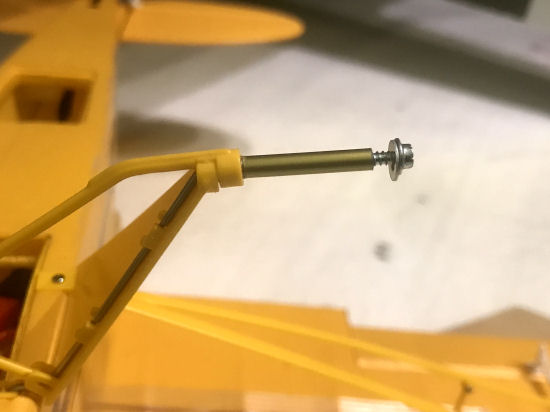

Longer Axle made by 3,2
mm Pushrod tube
- Shrinktube glued on to the Axle to fit the tube
- The Wheels fixed by Screws
The bigger Wheels dia 45 mm for flying
at Grassfield
The Brothers side by side
|
| Dimensions |
Wingspan: 650mm / 25.5in
Length: 460mm / 18.1in
Flying Weight: 145g / 5.11oz
|
| Wingstruts
|

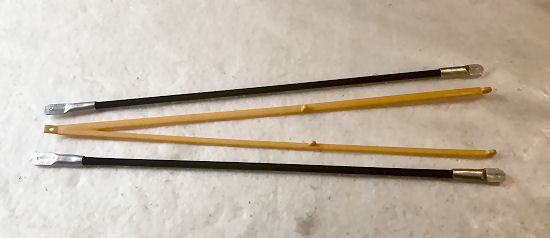

XK Model J3 Stronger Wingstruts for
eliminating Stalling
3 mm Carbonfibre stubes + Al-pipes
glued together
Before glueing and turning the other
heads 90 deg
The Struts are Stronger than Originals
The Struts
lenghts for smaller Attack Angle of Wingtips
- The Front ones are the same lenght as the Originals
- The Behind ones are about 2 mm longer to twist the Wingtip
|
|
TX and RX
|
This came with XK Model
J3
- 4CH 2.4GHz Transmitter
- 2.4GHz Receiver
+ 3D/6D gyro
I'm chancing these
to Spektrum system:
- DX7 or NX8Transmitter, which I allready have

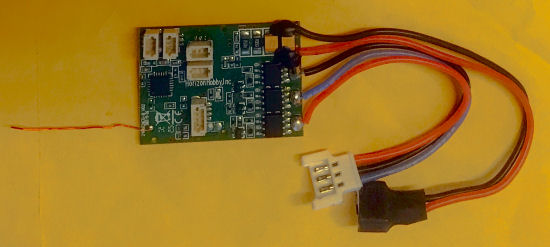

- AS6410NBL 6Ch Receiver with BL SPMAS6410NBL (Suitable for AS3X Spektrum DSMX
Transmitter)
- Servos changes to Walkera Micro-Servos, or something else
-The Servo connectors must be fixed
|
| Powerline |
2S 7.4V 500mAh LiPo
Battery
|
| RC-Simulator |
Phonix RC-Simulator-model is coming
soon here to download |
| |
|
